Inteli-Power® 4500 Series Ultimate All-In-One 90 Amp AC/DC Distribution Panel Converter

Original price was: $354.00.Current price is: $96.99.

SKU: ZHLLC 97652 Categories: Electrical, Power Converters

Your happiness, our mission.
Elevate Your Shopping Experience
Your needs, our top priority.
Shop with Confidence

/

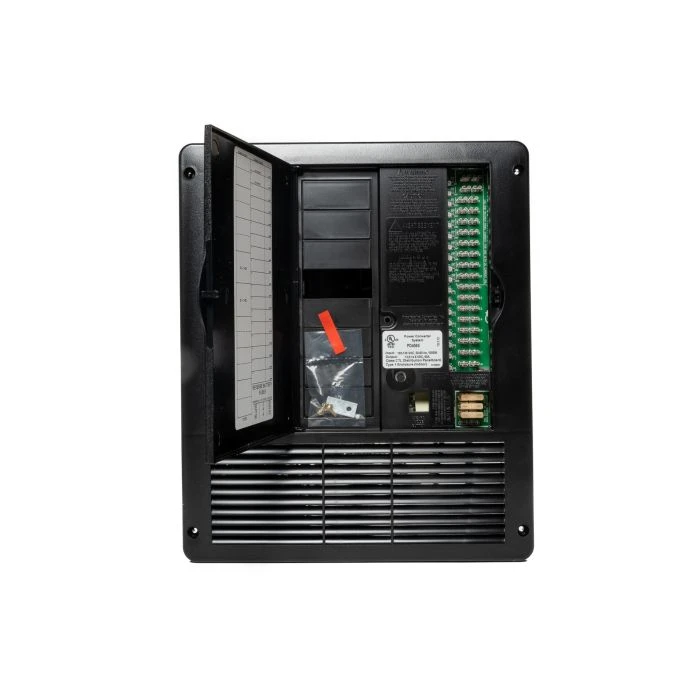

Inteli-Power® 4500 Series Ultimate All-In-One 90 Amp AC/DC Distribution Panel Converter

The AC Distribution Panel is rated for 240V input voltage at 50 Amps and has provisions for up to 12 branch circuit breakers plus a center feed dual 50 Amp main breaker (not included). The 12 built-in push and lock strain relief wiring connectors make installation quick and easy and saves over 50% on installation costs. The Inteli-Power® 4500 Series also has an attractive lightweight panel design made from black impact-resistant high temperature polymers.

DC Distribution Panel Features:

– Top ten fuse holders recommended for low current devices such as smoke
and carbon monoxide detectors.
– 18 branch fuse holders with 4-30 Amp circuits. Maximum rating 20 Amps
on remaining circuits — available with terminal blocks .
– LED indicators identify which fuse is blown.
– Converter/Charger section is accessible from the front.
– Converter/Charger ratings of 60, 75 and 90 Amps.
– Easy access reverse battery protection fuses.
– DC disconnect tie in.

Item #	97652
Brand	Progressive Dynamics
Series	Inteli-Power® 4500 Series
Model	PD4590V
Style	Distribution Panel
Input	105-130VAC 50/60 Hz 1550 Watts
Output Amperage	90 Amps (13.6 – 14.6 VDC)
Color	Black
Features	– Can be installed vertically (converter section down) or horizontally (converter section to the right) – Reverse battery protection – Electronic current limiting – High and Low AC input protection – Intelligent, variable speed, cooling fan – Lead Acid/ Lithium Switch is NEW feature – Automatic thermal protection – Press open door for easy access to circuit breakers – Front access to large wiring compartment – Optional DC Ground Buss can be user installed in the DC wiring compartment. – AC Section: 240/120 VAC 50 Amps Maximum* 120 VAC 50 Amp Maximum 12 Branch Circuits
Dimensions	11.85” W x 14.125” H x 7.80” D
Cutout	Cutout Size: 10.125” W x 13.25” H
Warranty	Limited 2 Year Manufacturer Warranty
Net Weight	10 lbs.
Special Order Item	No
Return Policy	Non-Returnable/Non-Refundable
UPC	675566459052
