WFCO Power Converter WF-9500 Series Main Board

Original price was: $314.99.Current price is: $97.99.

SKU: ZHLLC 99515 Categories: Electrical, Power Converters

Your happiness, our mission.
Elevate Your Shopping Experience
Your needs, our top priority.
Shop with Confidence

/

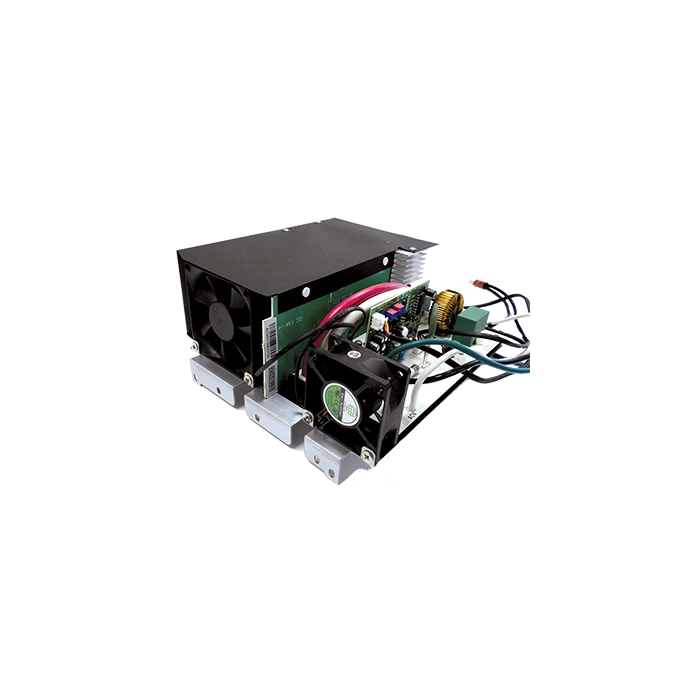

WFCO Power Converter WF-9500 Series Main Board

This new microprocessor driven technology will recognize lithium ion and lead acid battery chemistries and automatically adjust the charging profile to match the battery type. No more buttons. No more switches. RV owners will have the peace of mind that their batteries will be accurately charged, eliminating the risk of over and under charging. Additionally, with multi-stage charging and current monitoring in both lead acid and lithium profiles, battery life will be maximized. It installs easily with only two screws, three AC wires, and two DC wires. With no need to re-wire, installation is only 10 minutes! Customers also have the option for Reverse Polarity Detection that meets new RVIA and NEC requirements with an audible alarm notification. No additional wiring or hookup required and accepts hi-pot testing.

Item #	99515
Brand	WFCO
Model	WF-9560-AD-MBA
Features	Features The Exclusive “Auto-Detect” Feature For The Charging Of Batteries In Order To Maximize Battery Life For Lead Acid And AGM, It Is Best To Charge Batteries Slowly, Keep Them Topped Off With A Trickle-Charge When The RV Is Not Being Used 3-Stage “smart” Charger Continuously Measures The Battery Voltage Output And Regulates The Amount Of Charge Using Three Modes Of Operation: Absorption, Bulk And Float Modes Converter Normally Provides A Constant Target Output Voltage Of 13.6 Volt DC To Power All The Branch Circuits WF-9500-MBA-AD Series Is Designed With Optimized Charging For Battery Chemistry In The Unit For Lead Acid Batteries, WFCO’s Automatic Three-Stage Converter Handles Every Charging Need For The RV While Extending The Battery’s Life For Lithium-Ion Batteries, The Multi-Stage Process Ensures A Safe Operating Voltage For All Loads, Replaces Energy Back Into The Battery
Included	Converts: 105-130 Volt AC To 13.2-14.4 Volt DC Continuous Output Power: 820 Watt Peak Output Power: 1030 Watt Ampere Rating: 60 Amp Efficiency: 80 Percent Remote On/Off Capable: No With USB Port: No With Volt/Watt Meter: No With Short Circuit: Yes With Reverse Battery Protection: Yes With Battery Cables: Yes With Built-In Charger: Yes With Fuse: No
Dimensions	Length: 9-1/2 Inch Width: 7-1/16 Inch Height: 3-7/8 Inch
Warranty	Limited Lifetime Warranty
Special Order Item	No
